Honda Stepwagon Hybrid RP5 Transmission Fluid Replacement

This guide is for Honda Stepwagon 2017 onwards HYBRID only

  • Lift the vehicle on level ground
  • Remove undertray

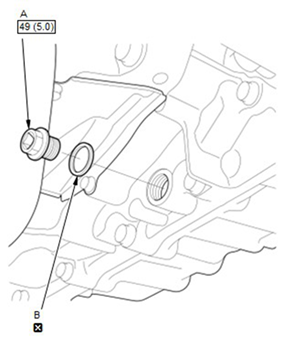

  • Remove train plug and drain transmission fluid as pictured
  • Replace Drain Plug

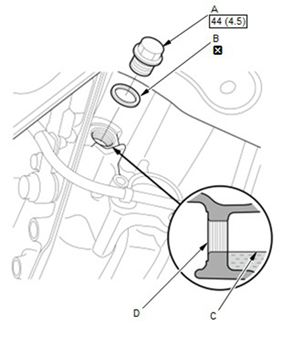

  • Locate the level/fill bolt
  • Refill Fluid

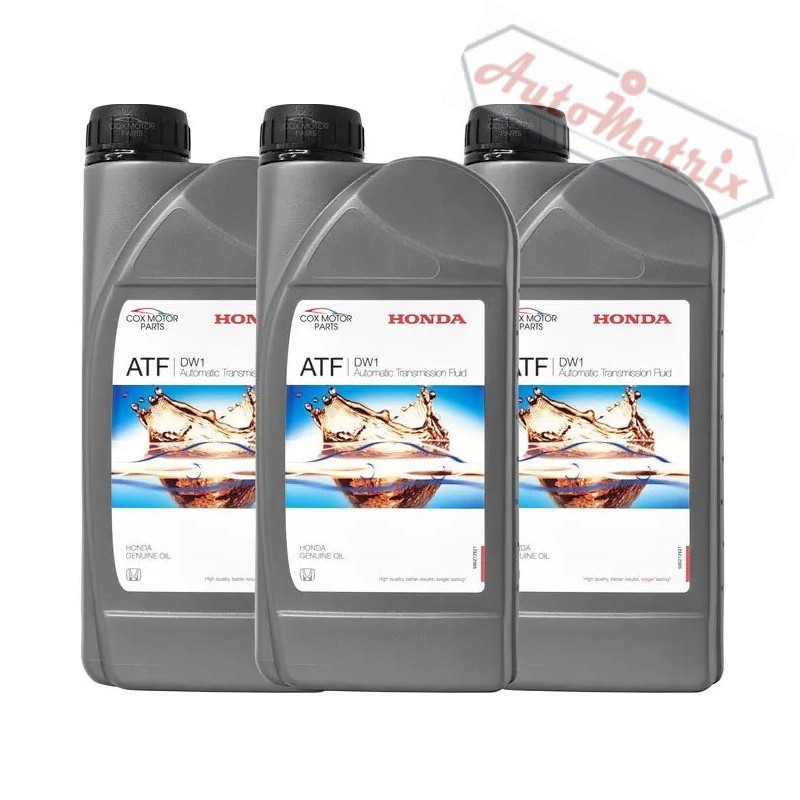

    -  ATF DW-1
    QTY:
    (Service 2.1 litre)
    (Overhaul 3.2 litre)

  • Fill until fluid overflows point D, once fluid has stopped overflowing at point C refit level/fill bolt
