Clearing Fault Codes:

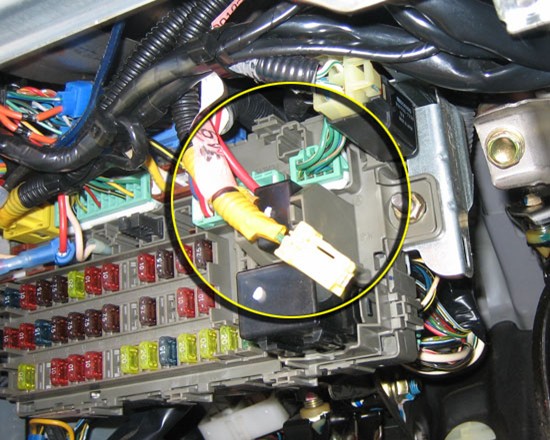

1. There is a yellow plug under the dash that has two wires going into it. The plug is plugged into an empty socket by the fuse panel. As you look at the panel it's the one to the left side NOT the one at the top.
2. Take that plug out.
3. Place a jumper wire into the two holes connecting the two. I used a bent paperclip.
4. Turn the ignition key on. (lights on do not start engine).
5. The srs light will go off, within 4 seconds, unplug one side of the jumper wire, when the srs light comes back on plug the jumper back in,(within 4 seconds) the light will blink twice and go out.
6. Unplug the jumper and turn the ignition key off. Wait 15 seconds, then start your car. The memory will be reset.
7. Replace the plug and you're done. Turn ignition switch off, remove the jumper, abs light should be out
1-4 short circuited To 12 volt power or VSS In Driver's Inflatable Air Bag Module
1-5 short circuited To Ground In Driver's Inflatable Air Bag Module
2-1 & 2-2 open circuited In Passenger's Inflatable Air Bag Module
2-3 short circuited To a Wire In Passenger's Inflatable Air Bag Module Or low Resistance
2-4 short circuited To 12 volt power or VSS In Passenger's Inflatable Air Bag Module
2-5 short circuited To Ground In Passenger's Inflatable Air Bag Module
3-1, 3-2 open circuited Or high Resistance In Driver's Seat Belt Pretensioner (Explosive Device)
3-3 short circuited To a Wire Or low Resistance In Driver's Seat Belt Pretensioner (Explosive Device)
3-4 short circuited To 12 volt power or VSS In Driver's Seat Belt Pretensioner (Explosive Device)
3-5 short circuited To Ground In Driver's Seat Belt Pretensioner (Explosive Device)
4-1 & 4-2 open circuited Or high Resistance In Passenger's Seat Belt Pretensioner (Explosive Device)
4-3 short circuited To a Wire Or low Resistance In Passenger's Seat Belt Pretensioner (Explosive Device)
4-4 short circuited To 12 volt power or VSS In Passenger's Seat Belt Pretensioner (Explosive Device)
4-5 short circuited To Ground In Passengers Seat Belt Pretensioner (Explosive Device)
5-1, 5-2, 5-3, 5-4, 5-5, 6-1, 6-2, 6-3, 6-4, 7-1, 7-2. 7-3, 8-1, 8-2, 8-3, 8-4, 8-5 & 8-6 Internal Failure Of SRS or
Supplemental Restraint System Unit. Check Battery System Voltage, If Voltage Is Low, Repair 12 volt power or VSS feed circuit Prior
To Troubleshooting SRS or Supplemental Restraint System.
9-1 No Code Faulty SRS or Supplemental Restraint System Indicator Circuit
9-2 Faulty SRS or Supplemental Restraint System 12 volt power or VSS supply or 12 volt power or VSS feed VB Line
10-1 SRS or Supplemental Restraint System Unit Replacement Code
