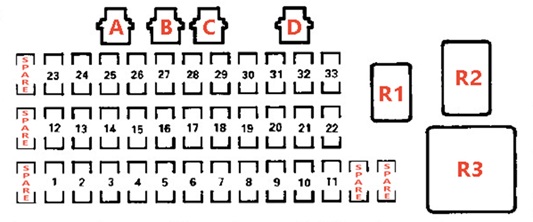

Inside Fuse Box (Drivers Footwell)
RELAYS:
R1 - REAR WINDOW DEFOGGER RELAY
R2 - ELECTRIC WINDOW RELAY
R3 - TURN SIGNAL / HAZARD LIGHT RELAY
OPTION CONNECTORS:
A - BATTERY POSITIVE +
B - LIGHT SWITCHED POSITIVE +
C - ACC POSITIVE +
D - IGN POSITIVE + (FUSE 17)
LOCATION | RATING | DESCRIPTION |
1 | 15A | RADIO / NAVIGATION |
2 | 20A | CENTRAL LOCKING |
3 | 10A | REAR WIPER / REAR WASHER |
4 | 10A | HEADLIGHT HIGH BEAM (RIGHT / DRIVER) |
5 | 10A | HEADLIGHT HIGH BEAM (LEFT / PASSENGER) |
6 | 20A | ELECTRIC SUNROOF (REAR) |
7 | - | |
8 | 20A | ELECTRIC SUNROOF (FRONT) |
9 | - | |
10 | 20A | ELECTRIC WINDOW (LEFT / PASSENGER) |
11 | 20A | ELECTRIC WINDOW (RIGHT / DRIVER) / POWER WINDOW MASTER SWITCH |
12 | 7.5A | INDICATORS / HAZARD LIGHTS |
13 | 15A | FUEL PUMP / SRS |
14 | - | |
15 | 7.5A | ALTERNATOR / VEHICLE SPEED SENSOR |
16 | 7.5A | REAR WINDOW HEATER / ABS UNIT (OPTIONAL) |
17 | 15A | IGN OPTION (D) / AC COMPRESSOR CLUTCH |
18 | 7.5A | AC RELAY / HEATERS / RADIATOR FAN |
19 | 7.5A | REVERSE LIGHTS |
20 | - | |
21 | 10A | HEADLIGHT LOW BEAM (RIGHT / DRIVER) |
22 | 10A | HEADLIGHT LOW BEAM (LEFT / PASSENGER) |
23 | 10A | SRS |
24 | 7.5A | ELECTRIC WINDOW RELAY (R2) |
25 | 7.5A | ECU / INSTRUMENT CLUSTER |
26 | 20A | FRONT WIPER / WINDSCREEN WASHER |
27 | - | |
28 | 7.5A | ACC OPTION (C) / CIGARETTE LIGHTER |
29 | - | |
30 | 7.5A | DASHBOARD LIGHTS |
31 | 7.5A | STARTER SIGNAL / ECU / FUEL INJECTION SYSTEM |
32 | 7.5A | SIDE LIGHTS / REAR LIGHTS / NUMBER PLATE LIGHT |
33 | - |

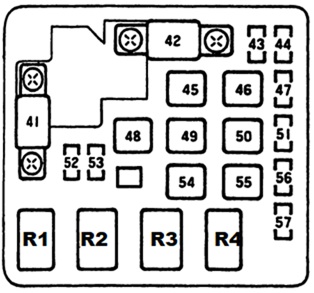

Engine Bay Fuse Box
RELAYS:
R1 - AC FAN RELAY
R2 - AC CLUTCH RELAY
R3 - RADIATOR FAN RELAY
R4 - HEATER FAN RELAY
ABS FUSE BOX RELAYS
61 | 40A | ABS PUMP |
62 | 20A | ABS ECU |
63 | 7.5A | ABS ECU |
LOCATION | RATING | DESCRIPTION |
41 | 100A | MAIN FUSE |
42 | 40A | IGN SWITCH |
43 | 7.5A | INTERIOR LIGHTS / FOG LIGHTS |
44 | 15A | FUEL INJECTION SYSTEM |
45 | - | |
46 | 40A | ELECTRIC WINDOWS |
47 | 7.5A | RADIO / ECU / HEATER CONTROLS / NAVIGATION |
48 | 30A | HEADLIGHTS |
49 | - | |
50 | 20A | REAR WINDOW HEATER |
51 | 20A | CENTRAL LOCKING / SLIDING DOOR |
52 | 15A | HORN / BRAKE LIGHTS |
53 | 10A | INDICATORS / HAZARD LIGHTS |
54 | 40A | CENTRAL LOCKING / OPTION |
55 | 40A | HEATER MOTOR |
56 | 20A | AC FAN / AC COMPRESSOR CLUTCH |
57 | 20A | RADIATOR FAN |
